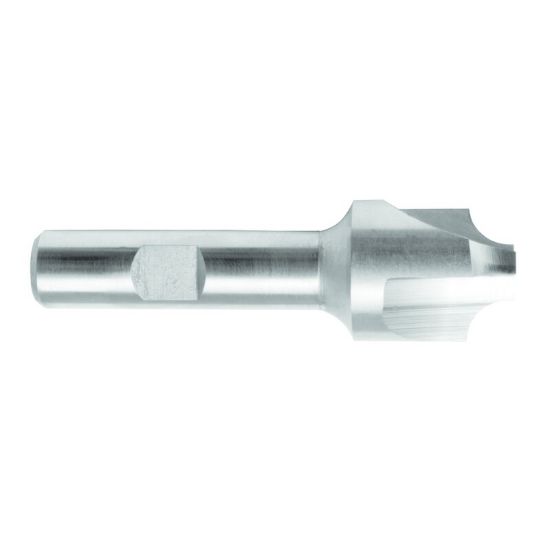

MELIN 13636 DIA 16MM SH 0.6299 LOC 0.1574 OAL 3.5039 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.1575 4.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13636
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Application Corner RoundIng
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.6299 16.00MM
Single/Double End Single End
Length Of Cut 0.1575 4.00MM
End Of Tool Shape Corner Rounder
Length Type Standard
Dimension Description 0.630 x 0.630 x 0.157 x 3.504
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Cutter Style Carbide Corner Rounder
Corner Radius 0.1575 4.00MM
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 4
Inch/Metric Metric
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Helix Angle
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
