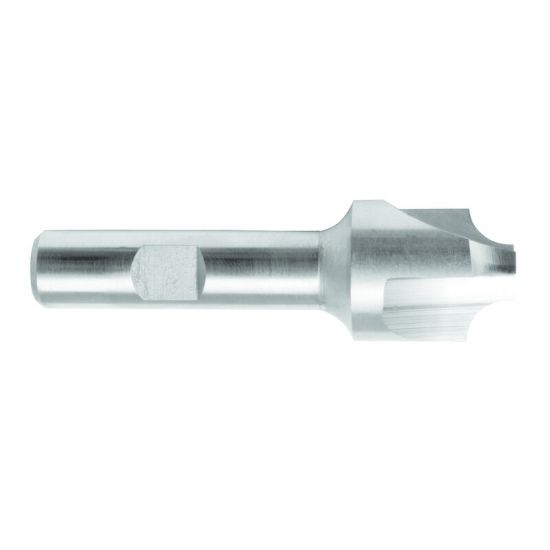

MELIN 13632 DIA 6MM SH 0.2362 LOC 0.0393 OAL 2.4803 Corner Rounder Carbide Uncoated Single End Corner Rounder 0.0394 1.00MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13632
Delivery date: 3-5 days
$32.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Made In USA Yes
Application Corner RoundIng
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Flutes/Inserts 4
Inch/Metric Metric
Dimension Description 0.236 x 0.236 x 0.039 x 2.480
Overall Len 2.4803 63.00MM
Cutter Style Carbide Corner Rounder
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.0393 1.00MM
Helix Angle
Machine Side Connection Size 0.2362 6.00MM
End Of Tool Shape Corner Rounder
Length Type Standard
Corner Radius 0.0394 1.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Cutter Dia 0.2362 6.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
