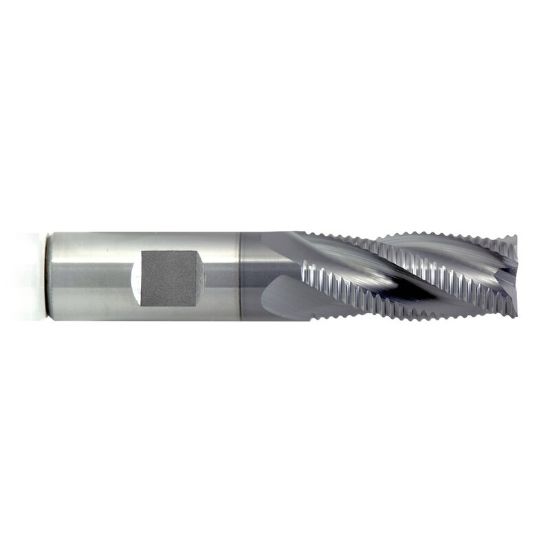

MELIN 13431 DIA 14MM SH 0.5512 LOC 1.2598 OAL 3.5039 End Mill Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13431
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Application Side Milling, Face Milling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.5512 14.00MM
Cutter Style Carbide Fine Pitch Rougher
Flutes/Inserts 4
Length Of Cut 1.2600 32.00MM
Length Type Standard
Inch/Metric Metric
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.5039 89.00MM
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Machine Side Connection Size 0.5512 14.00MM
End Of Tool Shape Square
Dimension Description 0.551 x 0.551 x 1.260 x 3.504
Cutter Dia 0.5512 14.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
