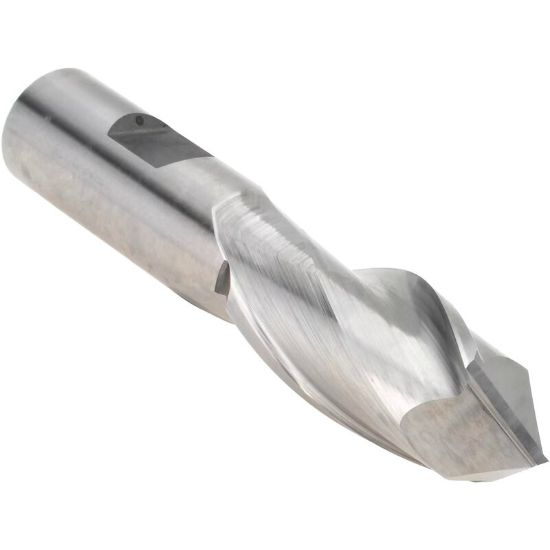

MELIN 13381 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.7559Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13381
Delivery date: 3-5 days
$62.72

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Application Drilling, Multi Funcion Tools, Side Milling
Performance Rating General Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Dimension Description 0.394 x 0.394 x 0.984 x 2.756
Machine Side Connection Size 0.3937 10.00MM
End Of Tool Shape Drill Point
Inch/Metric Metric
Single/Double End Single End
Cutter Style Carbide Drill/Mill
Overall Len 2.7560 70.00MM
Length Of Cut 0.9843 25.00MM
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
