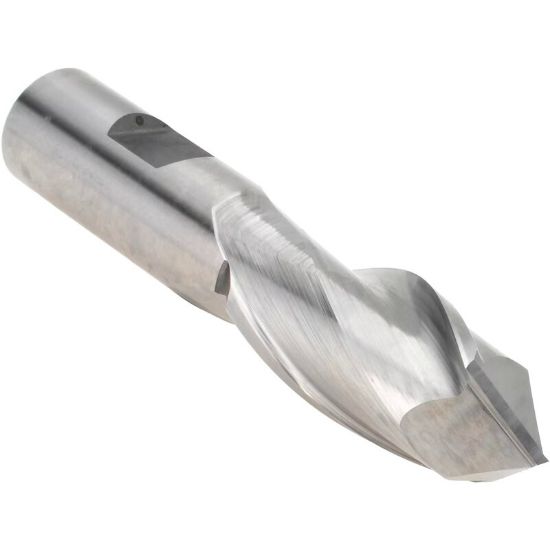

MELIN 13368 DIA 0.90MM SH 0.1181 LOC 0.2756 OAL 1.496Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13368
Delivery date: 3-5 days
$17.88

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Side Milling, Multi Funcion Tools, Drilling
Made In USA Yes
Shipping State Ohio/California
Package Size 1
Dimensional Specifications
Tool Material Carbide
Overall Len 1.4961 38.00MM
Helix Angle 30°
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Drill Point
Cutter Style Carbide Drill/Mill
Dimension Description 0.035 x 0.118 x 0.276 x 1.496
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Cutter Dia 0.0354 0.90MM
Length Type Standard
Single/Double End Single End
Machine Side Connection Size 0.1181 3.00MM
Flutes/Inserts 2
Inch/Metric Metric
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.1181 3.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
