  • MELIN 13337 DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

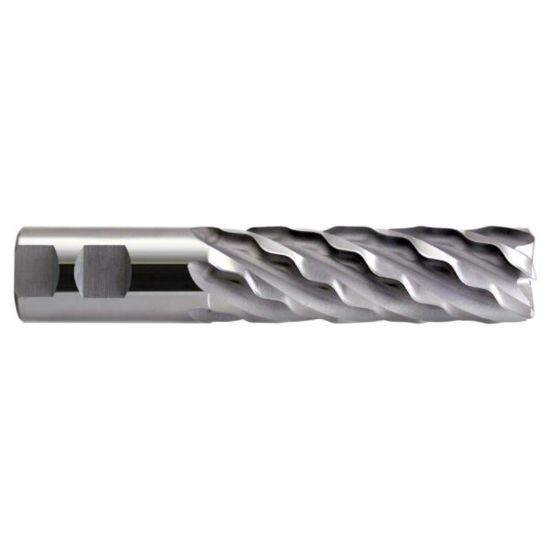

Picture of MELIN 13337 DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 13337 DIA 1-1/4 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13337
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Side Milling
Shipping State Ohio/California
Package Size 1
Made In USA Yes
Dimensional Specifications
Cutter Dia 1.2500 31.75MM - 1-1/4
Inch/Metric Inch
Dimension Description 1.250 x 1.250 x 3.000 x 5.500
Tool Material Cobalt
Helix Angle 35°
Single/Double End Single End
Machine Side Connection Size 1.2500 31.75MM
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Overall Len 5.5000 139.70MM
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Machine Side Connection Type Weldon
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
