  • MELIN 13133 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

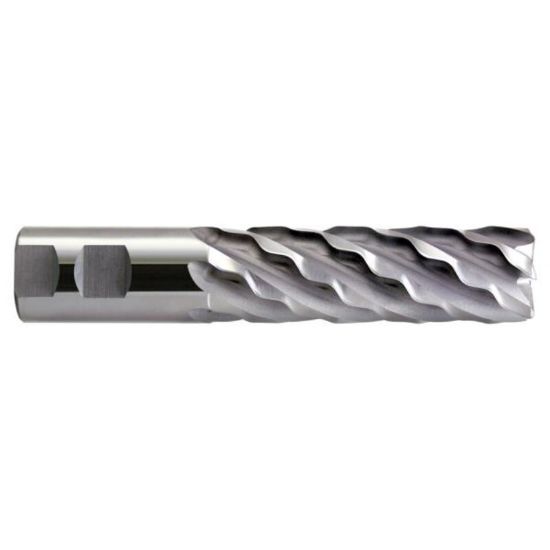

Picture of MELIN 13133 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 13133 DIA 1-1/4 SH 1.2500 LOC 2.00 OAL 4.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13133
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Package Size 1
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Tool Material Cobalt
End Of Tool Shape Corner Chamfer
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Cutter Dia 1.2500 31.75MM - 1-1/4
Overall Len 4.5000 114.30MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Flutes/Inserts 4
Length Type Standard
Dimension Description 1.250 x 1.250 x 2.000 x 4.500
Machine Side Connection Size 1.2500 31.75MM
Machine Side Connection Type Weldon
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
