  • MELIN 13128 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

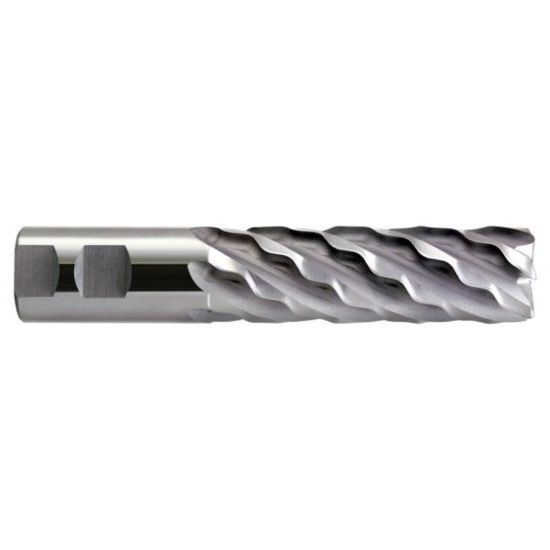

Picture of MELIN 13128 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 13128 DIA 1 SH 1.00 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13128
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Application Face Milling, Side Milling
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 1.0000 25.40MM
Inch/Metric Inch
Overall Len 5.5000 139.70MM
Dimension Description 1.000 x 1.000 x 3.000 x 5.500
Tool Material Cobalt
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Cutter Dia 1.0000 25.40MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.0000 25.40MM
Flutes/Inserts 4
Length Of Cut 3.0000 76.20MM
End Of Tool Shape Corner Chamfer
Length Type Standard
Machine Side Connection Type Weldon
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
