  • MELIN 13124 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer

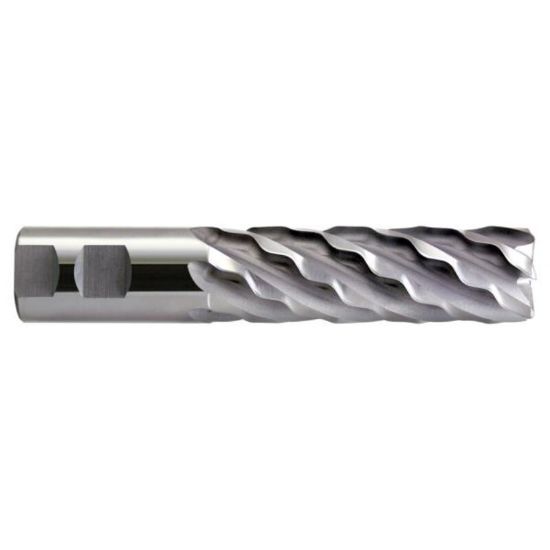

Picture of MELIN 13124 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer

MELIN 13124 DIA 3/4 SH 0.7500 LOC 1.6250 OAL 3.8750 End Mill Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13124
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Dimensional Specifications
Dimension Description 0.750 x 0.750 x 1.625 x 3.875
Machine Side Connection Type Weldon
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style Cobalt Wave Cut Rougher
Helix Angle 35°
Single/Double End Single End
Flutes/Inserts 4
Length Of Cut 1.6250 41.28MM
End Of Tool Shape Corner Chamfer
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Inch/Metric Inch
Overall Len 3.8750 98.43MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
