  • MELIN 13103 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp

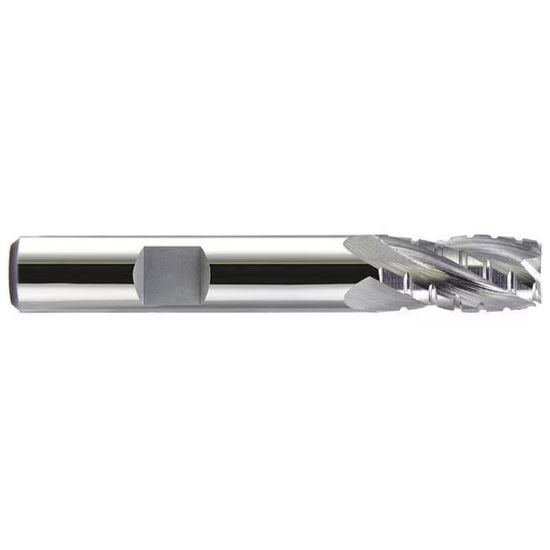

Picture of MELIN 13103 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 13103 DIA 1/4 SH 0.3750 LOC 0.6250 OAL 2.4375 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13103
Delivery date: 3-5 days
$32.21

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Performance Rating General Performance
Shipping State Ohio/California
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutter Style Cobalt Rougher/Finisher
Tool Material Cobalt
Single/Double End Single End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Flutes/Inserts 4
Length Of Cut 0.6250 15.88MM
Dimension Description 0.250 x 0.375 x 0.625 x 2.438
Machine Side Connection Type Weldon
Helix Angle 30°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.4375 61.91MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
