  • MELIN 13082 DIA 1-3/8 SH 0.7500 LOC 0.4375 OAL 3.7500 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

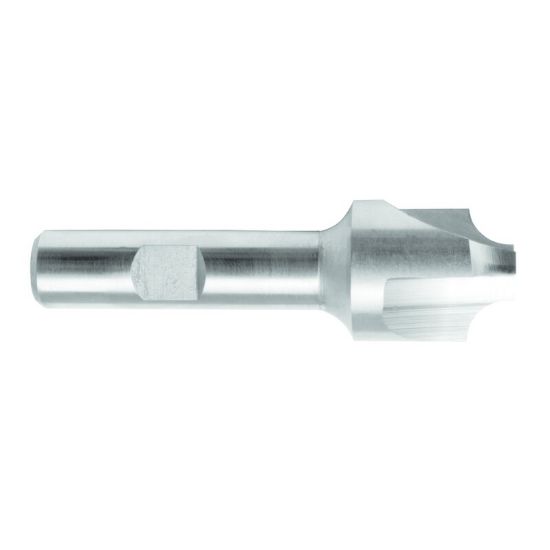

Picture of MELIN 13082 DIA 1-3/8 SH 0.7500 LOC 0.4375 OAL 3.7500 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

MELIN 13082 DIA 1-3/8 SH 0.7500 LOC 0.4375 OAL 3.7500 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13082
Delivery date: 3-5 days
$137.53

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Corner RoundIng
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
End Of Tool Shape Corner Rounder
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.4375 11.11MM
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Style Cobalt Corner Rounder
Single/Double End Single End
Dimension Description 1.375 x 0.750 x 0.438 x 3.750
Flutes/Inserts 4
Length Type Standard
Corner Radius 0.4375 11.11MM
Machine Side Connection Type Weldon
Overall Len 3.7500 95.25MM
Inch/Metric Inch
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
