  • MELIN 13072 DIA 1 SH 1.00 LOC 0.2500 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2500 6.35MM

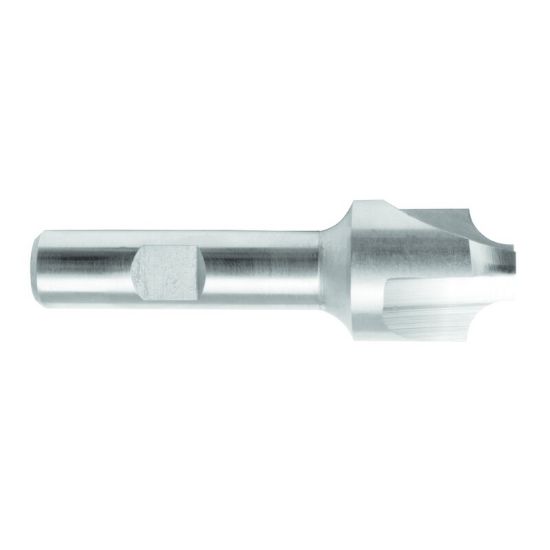

Picture of MELIN 13072 DIA 1 SH 1.00 LOC 0.2500 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2500 6.35MM

MELIN 13072 DIA 1 SH 1.00 LOC 0.2500 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2500 6.35MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13072
Delivery date: 3-5 days
$94.35

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Made In USA Yes
Application Corner RoundIng
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Tool Material Cobalt
Cutter Style Cobalt Corner Rounder
Single/Double End Single End
Machine Side Connection Type Weldon
Cutter Dia 1.0000 25.40MM
End Of Tool Shape Corner Rounder
Length Type Standard
Machine Side Connection Size 1.0000 25.40MM
Shank/Pilot Dia 1.0000 25.40MM
Inch/Metric Inch
Overall Len 3.0000 76.20MM
Corner Radius 0.2500 6.35MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 0.2500 6.35MM
Dimension Description 1.000 x 0.500 x 0.250 x 3.000
Flutes/Inserts 4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
