  • MELIN 13060 DIA 7/16 SH 0.3750 LOC 0.0313 OAL 2.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.0313 0.80MM

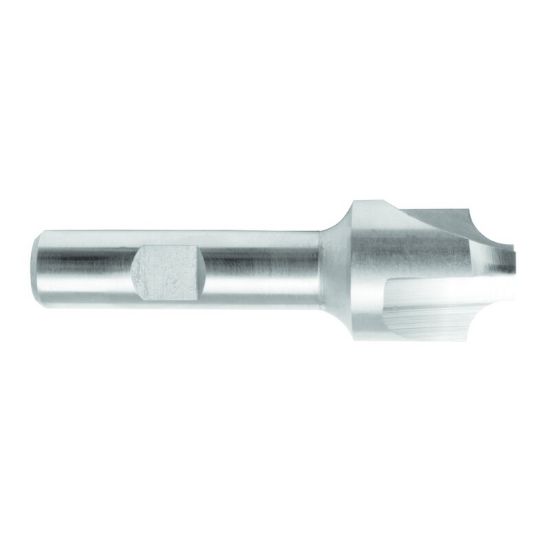

Picture of MELIN 13060 DIA 7/16 SH 0.3750 LOC 0.0313 OAL 2.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.0313 0.80MM

MELIN 13060 DIA 7/16 SH 0.3750 LOC 0.0313 OAL 2.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.0313 0.80MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13060
Delivery date: 3-5 days
$57.81

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Package Size 1
Application Corner RoundIng
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.4375 11.11MM - 7/16
Overall Len 2.5000 63.50MM
Cutter Style Cobalt Corner Rounder
Machine Side Connection Type Weldon
Inch/Metric Inch
Flutes/Inserts 4
Length Of Cut 0.0313 0.80MM
End Of Tool Shape Corner Rounder
Length Type Standard
Tool Material Cobalt
Single/Double End Single End
Machine Side Connection Size 0.3750 9.53MM
Corner Radius 0.0313 0.80MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Dimension Description 0.438 x 0.375 x 0.031 x 2.500
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
