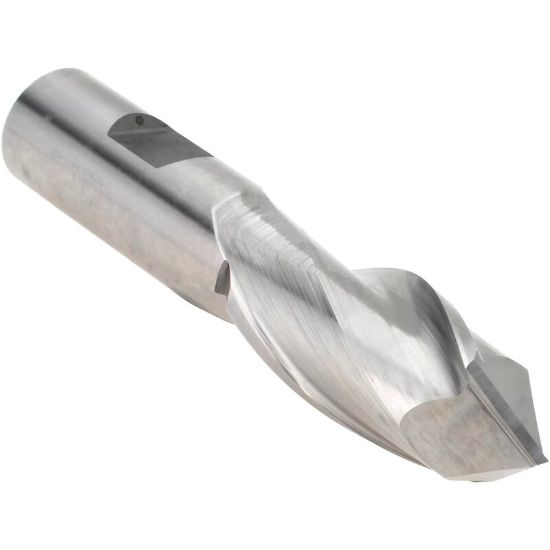

MELIN 13035 DIA 0.045 SH 0.1250 LOC 0.2756 OAL 1.50Drill /Mill Carbide Uncoated Single End Drill Point

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL13035
Delivery date: 3-5 days
$19.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Application Drilling, Multi Funcion Tools, Side Milling
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Single/Double End Single End
Cut Rating <48HRC Steel, Aluminum, Ductile Iron, Gray Iron, High Temp, Stainless Steel,
Machine Side Connection Size 0.1250 3.18MM
Length Type Standard
Helix Angle 30°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.0450 1.14MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Of Cut 0.2756 7.00MM
End Of Tool Shape Drill Point
Flutes/Inserts 2
Dimension Description 0.045 x 0.125 x 0.276 x 1.500
Overall Len 1.5000 38.10MM
Cutter Style Carbide Drill/Mill
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
