  • MELIN 12832 DIA 11/32 SH 0.3750 LOC 2.00 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

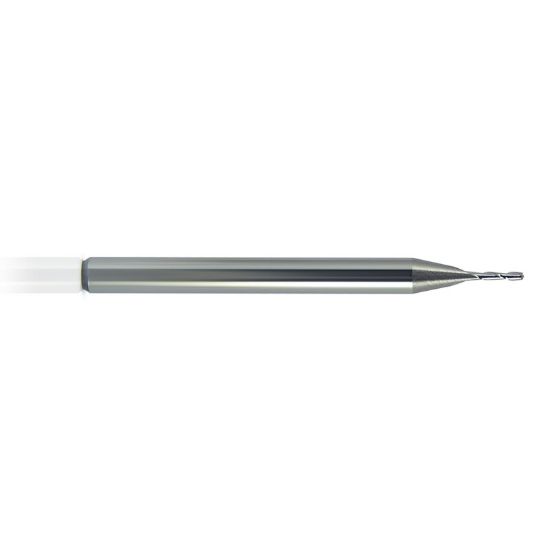

Picture of MELIN 12832 DIA 11/32 SH 0.3750 LOC 2.00 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

MELIN 12832 DIA 11/32 SH 0.3750 LOC 2.00 OAL 3.7500 End Mill Standard Flute Standard Helix Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12832
Delivery date: 3-5 days
$36.89

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Dimension Description 0.344 x 0.375 x 2.000 x 3.750
Tool Material Cobalt
Single/Double End Single End
Flutes/Inserts 2
Length Type Standard
Cutter Dia 0.3438 8.73MM - 11/32
Overall Len 3.7500 95.25MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Machine Side Connection Type Weldon
Cutter Style Cobalt Finisher
Helix Angle 30°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
