  • MELIN 12757 DIA 0.9588 SH 0.7500 LOC 0.3856 OAL 3.437T-Slot Cobalt Uncoated Single End 45.0° Chamfer

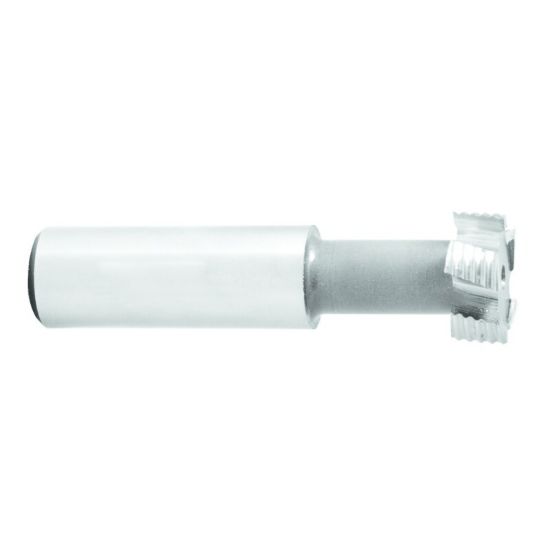

Picture of MELIN 12757 DIA 0.9588 SH 0.7500 LOC 0.3856 OAL 3.437T-Slot Cobalt Uncoated Single End 45.0° Chamfer

MELIN 12757 DIA 0.9588 SH 0.7500 LOC 0.3856 OAL 3.437T-Slot Cobalt Uncoated Single End 45.0° Chamfer

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12757
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application T-Slotting, Groove Milling, Slot Milling
Package Size 1
Made In USA Yes
Performance Rating General Performance
Shipping State Ohio/California
Dimensional Specifications
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Machine Side Connection Type Weldon
Length Of Cut 0.3856 9.79MM
Inch/Metric Inch
Dimension Description 0.959 x 0.750 x 0.386 x 3.438
Overall Len 3.4375 87.31MM
Length Type Standard
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Chamfer
Single/Double End Single End
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.9588 24.35MM
Cutter Style Cobalt T-Slot
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
