  • MELIN 12730 DIA 1-3/8 SH 0.50 LOC 0.50 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.5000 12.70MM

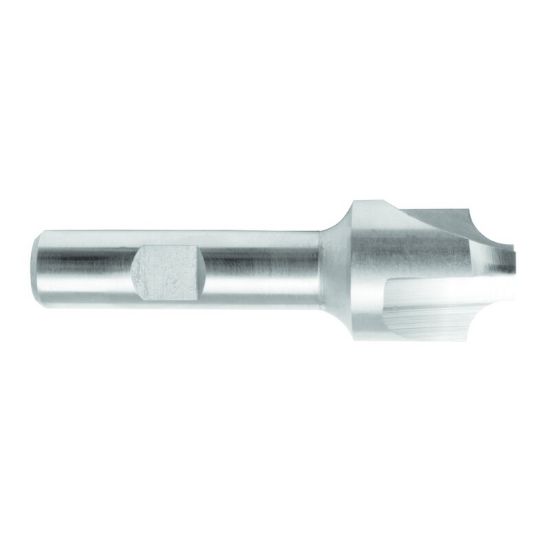

Picture of MELIN 12730 DIA 1-3/8 SH 0.50 LOC 0.50 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.5000 12.70MM

MELIN 12730 DIA 1-3/8 SH 0.50 LOC 0.50 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.5000 12.70MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12730
Delivery date: 3-5 days
$145.53

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Corner RoundIng
Made In USA Yes
Shipping State Ohio/California
Dimensional Specifications
Length Of Cut 0.5000 12.70MM
Inch/Metric Inch
Corner Radius 0.5000 12.70MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Corner Rounder
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Dia 1.3750 34.93MM - 1-3/8
Machine Side Connection Type Weldon
Dimension Description 1.375 x 0.500 x 0.500 x 3.500
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Cobalt Corner Rounder
Single/Double End Single End
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
