  • MELIN 12726 DIA 1-1/4 SH 0.50 LOC 0.4375 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

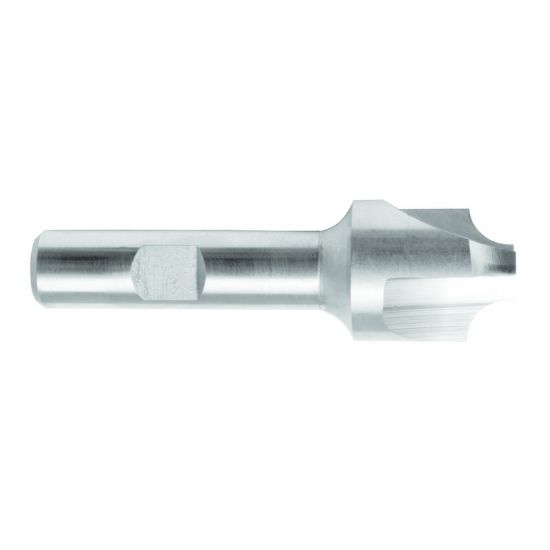

Picture of MELIN 12726 DIA 1-1/4 SH 0.50 LOC 0.4375 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

MELIN 12726 DIA 1-1/4 SH 0.50 LOC 0.4375 OAL 3.50 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.4375 11.11MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12726
Delivery date: 3-5 days
$139.97

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Ohio/California
Package Size 1
Application Corner RoundIng
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Cobalt Corner Rounder
Single/Double End Single End
Dimension Description 1.250 x 0.500 x 0.438 x 3.500
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Corner Rounder
Length Type Standard
Corner Radius 0.4375 11.11MM
Cutter Dia 1.2500 31.75MM - 1-1/4
Length Of Cut 0.4375 11.11MM
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
