  • MELIN 12712 DIA 7/8 SH 0.50 LOC 0.2188 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2187 5.55MM

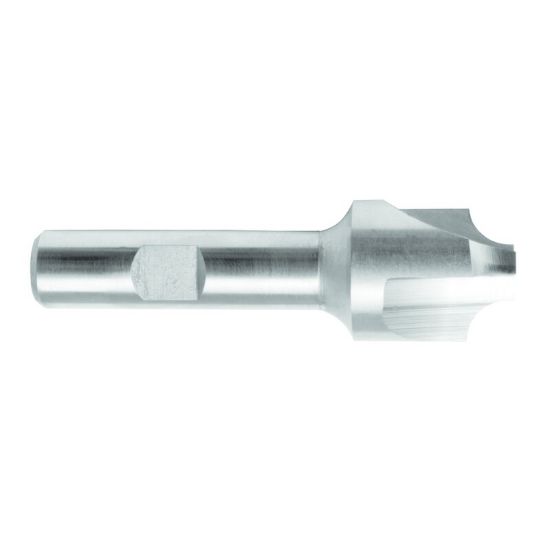

Picture of MELIN 12712 DIA 7/8 SH 0.50 LOC 0.2188 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2187 5.55MM

MELIN 12712 DIA 7/8 SH 0.50 LOC 0.2188 OAL 3.00 Corner Rounder Cobalt Uncoated Single End Corner Rounder 0.2187 5.55MM

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12712
Delivery date: 3-5 days
$105.95

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Ohio/California
Performance Rating General Performance
Application Corner RoundIng
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Weldon
Inch/Metric Inch
Dimension Description 0.875 x 0.500 x 0.219 x 3.000
Corner Radius 0.2187 5.55MM
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Flutes/Inserts 3
Cutter Dia 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.5000 12.70MM - 1/2
End Of Tool Shape Corner Rounder
Tool Material Cobalt
Machine Side Connection Size 0.5000 12.70MM
Cutter Style Cobalt Corner Rounder
Single/Double End Single End
Length Type Standard
Overall Len 3.0000 76.20MM
Length Of Cut 0.2188 5.56MM
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
