  • MELIN 12539 DIA 1 SH 1.00 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

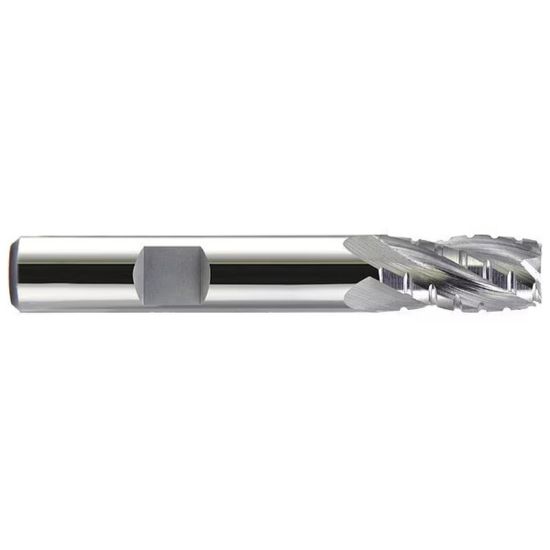

Picture of MELIN 12539 DIA 1 SH 1.00 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 12539 DIA 1 SH 1.00 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12539
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Ohio/California
Made In USA Yes
Performance Rating General Performance
Package Size 1
Dimensional Specifications
Overall Len 4.2500 107.95MM
Flutes/Inserts 5
Dimension Description 1.000 x 0.750 x 2.000 x 4.250
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Cutter Dia 1.0000 25.40MM
Length Type Standard
Cutter Style Cobalt Rougher/Finisher
Machine Side Connection Size 1.0000 25.40MM
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
