  • MELIN 12332 DIA 1-1/2 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End Square Sharp

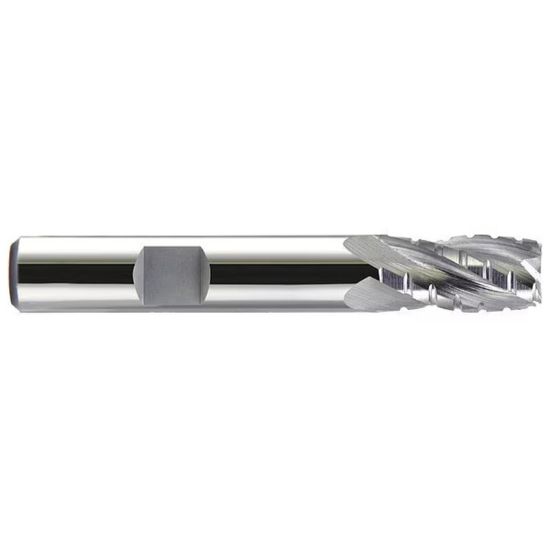

Picture of MELIN 12332 DIA 1-1/2 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 12332 DIA 1-1/2 SH 1.2500 LOC 6.00 OAL 8.50 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL12332
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Ohio/California
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Length Of Cut 6.0000 152.40MM
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Overall Len 8.5000 215.90MM
Helix Angle 30°
Tool Material Cobalt
Single/Double End Single End
Dimension Description 1.500 x 1.250 x 6.000 x 8.500
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Machine Side Connection Size 1.2500 31.75MM
Cutter Style Cobalt Rougher/Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
