  • MELIN 11911 DIA 1-1/2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

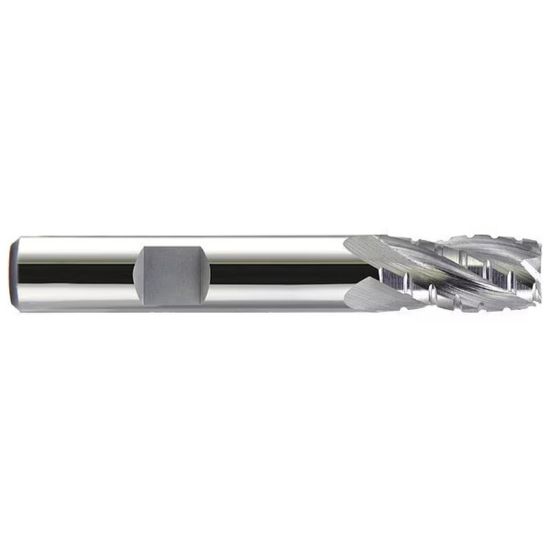

Picture of MELIN 11911 DIA 1-1/2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 11911 DIA 1-1/2 SH 0.7500 LOC 2.00 OAL 4.2500 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL11911
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Cutter Style Cobalt Rougher/Finisher
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
End Of Tool Shape Square
Overall Len 4.2500 107.95MM
Length Type Standard
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Dimension Description 1.500 x 0.750 x 2.000 x 4.250
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Helix Angle 30°
Machine Side Connection Size 0.7500 19.05MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
