  • MELIN 11855 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp

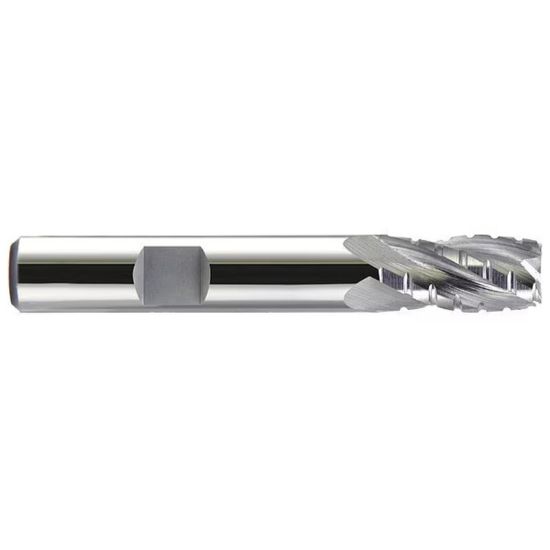

Picture of MELIN 11855 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 11855 DIA 13/16 SH 0.7500 LOC 1.8750 OAL 4.1250 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL11855
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Shipping State Ohio/California
Performance Rating General Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Dimension Description 0.813 x 0.750 x 1.875 x 4.125
Length Of Cut 1.8750 47.63MM
Length Type Standard
Cutter Style Cobalt Rougher/Finisher
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Cutter Dia 0.8125 20.64MM - 13/16
Tool Material Cobalt
Overall Len 4.1250 104.78MM
Single/Double End Single End
End Of Tool Shape Square
Inch/Metric Inch
Machine Side Connection Size 0.7500 19.05MM
Flutes/Inserts 5
Machine Side Connection Type Weldon
Helix Angle 30°
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
