  • MELIN 11853 DIA 3/4 SH 0.7500 LOC 4.1250 OAL 6.3750 End Mill Cobalt Uncoated Single End Square Sharp

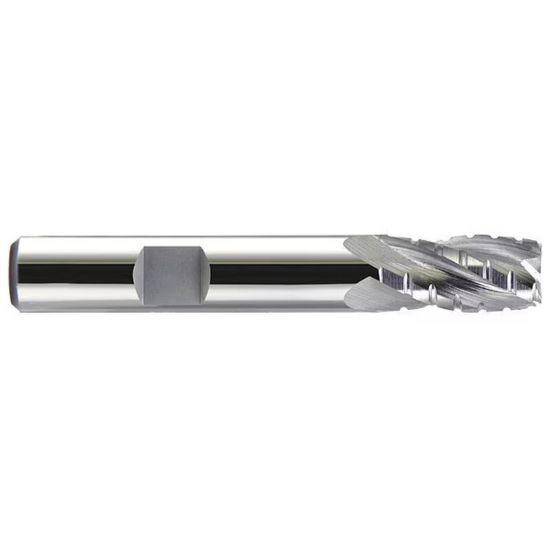

Picture of MELIN 11853 DIA 3/4 SH 0.7500 LOC 4.1250 OAL 6.3750 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 11853 DIA 3/4 SH 0.7500 LOC 4.1250 OAL 6.3750 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL11853
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating General Performance
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Ohio/California
Package Size 1
Dimensional Specifications
Machine Side Connection Type Weldon
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Length Of Cut 4.1250 104.78MM
End Of Tool Shape Square
Tool Material Cobalt
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Single/Double End Single End
Dimension Description 0.750 x 0.750 x 4.125 x 6.375
Flutes/Inserts 4
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Overall Len 6.3750 161.93MM
Cutter Style Cobalt Rougher/Finisher
Inch/Metric Inch
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Cobalt
Industry-Specific Applications
Job Shop Yes
