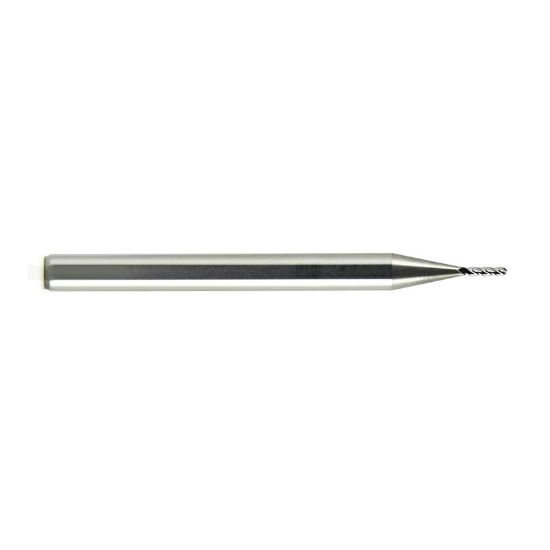

MELIN 10317 DIA 5/32 SH 0.3750 LOC 0.7500 OAL 3.50 End Mill Taper Flute Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10317
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Profile Milling, Taper Side Milling, Ball Milling
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Single/Double End Single End
Cutter Dia 0.1563 3.97MM - 5/32
Length Of Cut 0.7500 19.05MM
Dimension Description 0.156 x 0.375 x 0.750 x 3.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Inch/Metric Inch
Helix Angle 30°
End Of Tool Shape Ball Nose
Taper Flute Yes
Taper Angle 7.0°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
