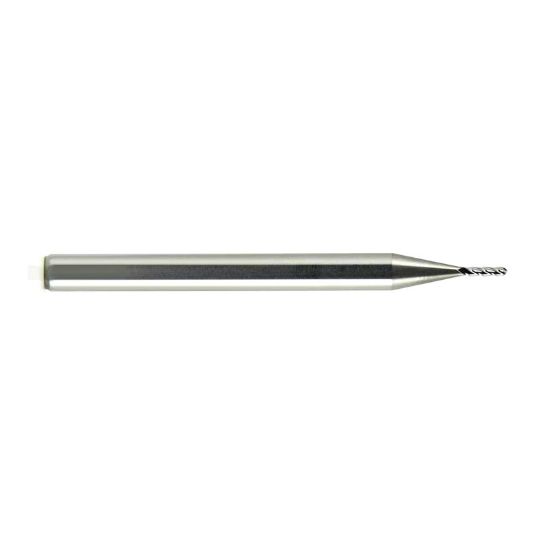

MELIN 10311 DIA 1/8 SH 0.3750 LOC 1.50 OAL 3.50 End Mill Taper Flute Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10311
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Profile Milling, Taper Side Milling
Performance Rating General Performance
Package Size 1
Made In USA Yes
Shipping State Ohio/California
Dimensional Specifications
End Of Tool Shape Ball Nose
Taper Flute Yes
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Ball Taper Flute Finisher
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Length Of Cut 1.5000 38.10MM
Taper Angle 5.0°
Single/Double End Single End
Dimension Description 0.125 x 0.375 x 1.500 x 3.500
Cutter Dia 0.1250 3.18MM - 1/8
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
