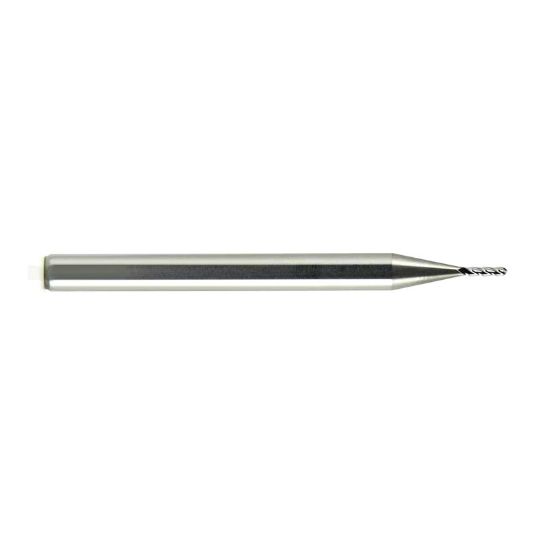

MELIN 10303 DIA 1/8 SH 0.2500 LOC 1.00 OAL 3.00 End Mill Taper Flute Carbide Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10303
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Profile Milling, Taper Side Milling
Performance Rating General Performance
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Ball Taper Flute Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Single/Double End Single End
Machine Side Connection Type Cylindrical
Length Of Cut 1.0000 25.40MM
Helix Angle 30°
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Taper Angle 3.0°
Taper Flute Yes
Dimension Description 0.125 x 0.250 x 1.000 x 3.000
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
