  • MELIN 10278 DIA 7/8 SH 0.6250 LOC 0.2756 OAL 3.6250 End Mill Cobalt Uncoated Single End Square Sharp

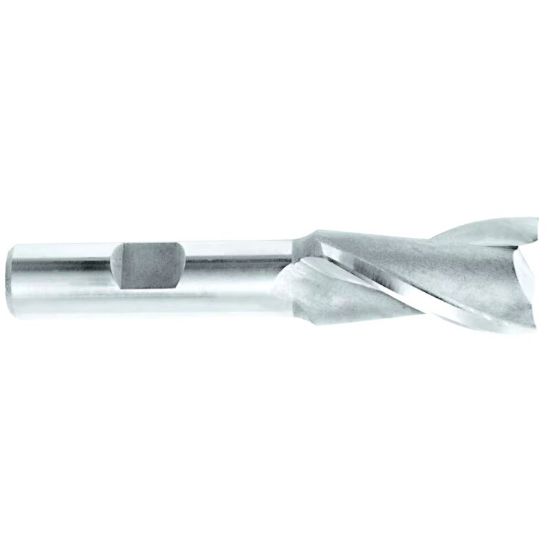

Picture of MELIN 10278 DIA 7/8 SH 0.6250 LOC 0.2756 OAL 3.6250 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 10278 DIA 7/8 SH 0.6250 LOC 0.2756 OAL 3.6250 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10278
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Key Way CuttIng, Slot Milling
Package Size 1
Performance Rating General Performance
Made In USA Yes
Shipping State Ohio/California
Dimensional Specifications
Cutter Dia 0.8750 22.23MM - 7/8
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 2
Inch/Metric Inch
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Overall Len 3.6250 92.08MM
End Of Tool Shape Square
Machine Side Connection Type Weldon
Tool Material Cobalt
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Dimension Description 0.875 x 0.625 x 0.276 x 3.625
Cutter Style Cobalt Keyway
Length Of Cut 0.2756 7.00MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Cobalt
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
