  • MELIN 10262 DIA 1-1/2 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End Square Sharp

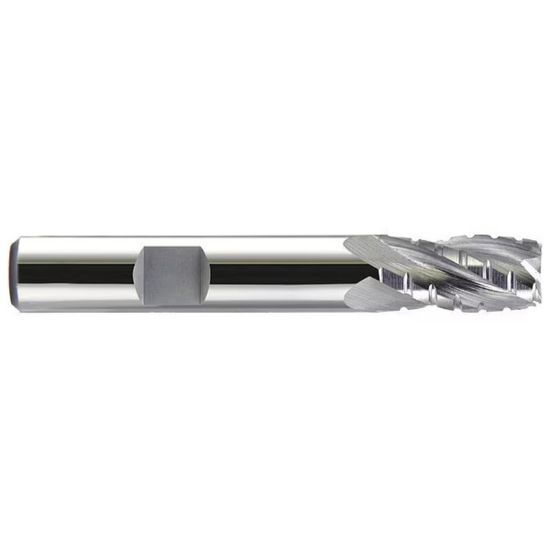

Picture of MELIN 10262 DIA 1-1/2 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 10262 DIA 1-1/2 SH 1.2500 LOC 3.00 OAL 5.50 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10262
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Application Face Milling, Shoulder Milling, Counterboring, Slot Milling
Package Size 1
Shipping State Ohio/California
Made In USA Yes
Dimensional Specifications
Dimension Description 1.500 x 1.250 x 3.000 x 5.500
Machine Side Connection Size 1.2500 31.75MM
Cutter Style Cobalt Rougher/Finisher
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
End Of Tool Shape Square
Tool Material Cobalt
Single/Double End Single End
Cutter Dia 1.5000 38.10MM - 1-1/2
Machine Side Connection Type Weldon
Flutes/Inserts 6
Inch/Metric Inch
Overall Len 5.5000 139.70MM
Helix Angle 30°
Length Of Cut 3.0000 76.20MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Cobalt
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
