  • MELIN 10224 DIA 3/8 SH 0.3750 LOC 0.2756 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp

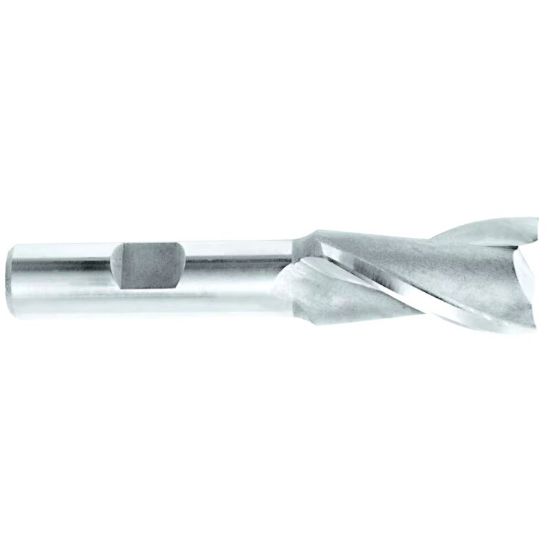

Picture of MELIN 10224 DIA 3/8 SH 0.3750 LOC 0.2756 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp

MELIN 10224 DIA 3/8 SH 0.3750 LOC 0.2756 OAL 2.3125 End Mill Cobalt Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MELIN
SKU: MEL10224
Delivery date: 3-5 days
$16.16

Cutting Edge Definition

Cobalt steel is a type of high-speed alloy steel used primarily for cutting tools. Introduced to manufacturers in 1900, high-speed steel, containing a mixture of tungsten, chromium, and trace amounts of carbon, enabled manufacturers to double or even triple their production.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Key Way CuttIng
Shipping State Ohio/California
Package Size 1
Made In USA Yes
Performance Rating General Performance
Dimensional Specifications
Machine Side Connection Type Weldon
Overall Len 2.3125 58.74MM
Inch/Metric Inch
Cutter Style Cobalt Keyway
Cutter Dia 0.3750 9.53MM - 3/8
Dimension Description 0.375 x 0.375 x 0.276 x 2.313
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 0.2756 7.00MM
Tool Material Cobalt
Single/Double End Single End
Flutes/Inserts 2
Length Type Standard
Cut Rating <40HRC Steel, Ductile Iron, Gray Iron, High Temp, Stainless Steel
Shank/Pilot Dia 0.3750 9.53MM - 3/8
End Of Tool Shape Square
Cutting & Machining Properties
Cutting Edge Mat Cobalt
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
