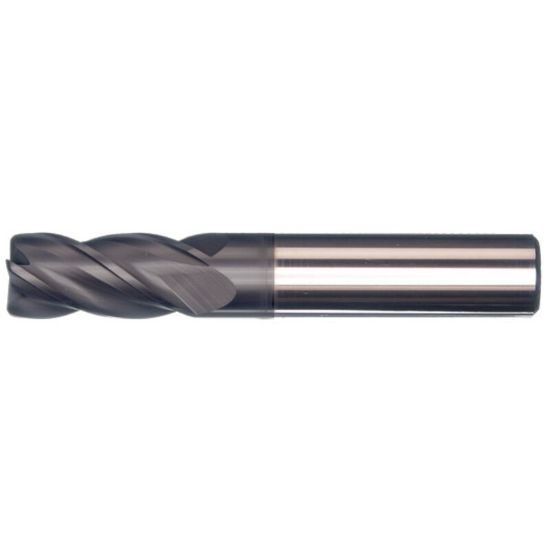

Picture of MasterCut Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0450 1.14mm V4
Picture of MasterCut Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0450 1.14mm V4
Picture of MasterCut Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0450 1.14mm V4

MasterCut Dia 9/16 SH 0.5625 LOC 1.1250 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0450 1.14mm V4

Part Number: MAS400-484W-1 0.563 x 0.563 x 1.125 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: 1270154
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0450 1.14MM Standard Flute Flutes 4 Single End V4 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA, FLORIDA
Made In USA YES, YES
Cutter Type Solid End Mill, Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide, Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <48HRC Steel, <48HRC Steel, Gray Iron, Gray Iron, Stainless Steel, Stainless Steel, High Temp, High Temp
Coating nACRoA, nACRoA
Mach Side Connection Size 0.5625 14.29MM, 0.5625 14.29MM
Overall Length 3.5000 88.90MM, 3.5000 88.90MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.5625 14.29MM - 9/16, 0.5625 14.29MM - 9/16
Flutes/Inserts 4, 4
Tool Dia 0.5625 14.29MM - 9/16, 0.5625 14.29MM - 9/16
Length Type STANDARD, STANDARD
Performance Rating High Performance, High Performance
Length Of Cut 1.1250 28.58MM, 1.1250 28.58MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End, Single End
Corner Radius 0.0450 1.14MM, 0.0450 1.14MM
Inch/Metric Inch, Inch
Helix Angle Variable, Variable
Center Cutting Center Cutting, Center Cutting
