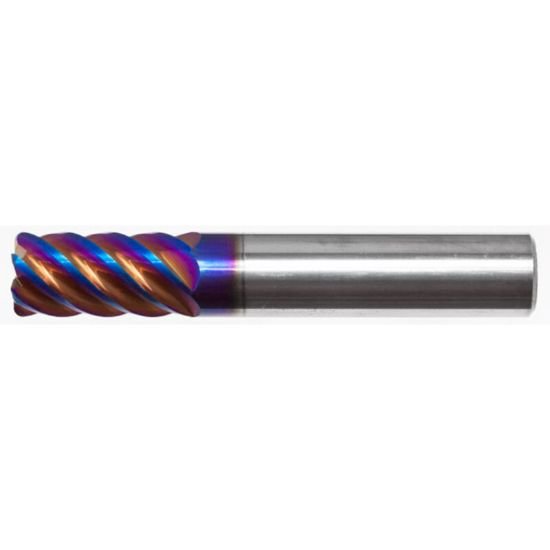

Picture of MasterCut Dia 7/8 SH 0.8750 LOC 1.50 OAL4.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0300 0.76mm F45

MasterCut Dia 7/8 SH 0.8750 LOC 1.50 OAL4.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0300 0.76mm F45

Part Number: MAS459-283-5 0.875 x 0.875 x 1.500 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: 1270773
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0300 0.76MM Standard Flute Flutes 6 Single End F45 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, High Temp, Inconel
Coating nACRoA
Mach Side Connection Size 0.8750 22.23MM
Overall Length 4.0000 101.60MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.8750 22.23MM - 7/8
Flutes/Inserts 6
Tool Dia 0.8750 22.23MM - 7/8
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 1.5000 38.10MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
