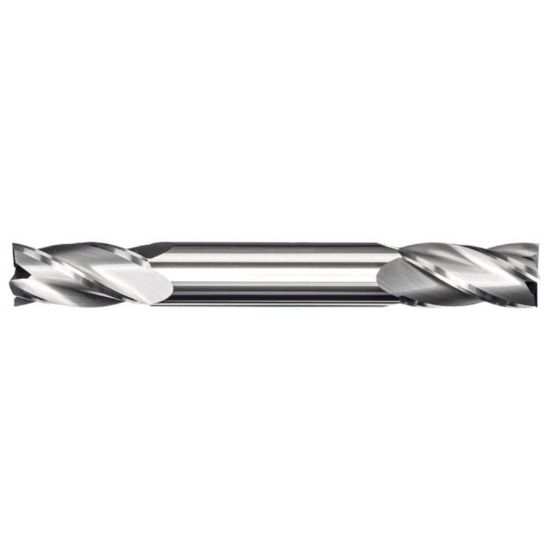

MASTERCUT DIA 5/16 SH 0.3125 LOC 0.50 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS202-324
Delivery date: 3-5 days
$26.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Shoulder Milling, Counterboring, Face Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Shipping State Florida
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.5000 12.70MM
Helix Angle 30°
Cutter Dia 0.3125 7.94MM - 5/16
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Square
Cutter Style Carbide Finisher
Machine Side Connection Size 0.3125 7.94MM
Flutes/Inserts 4
Length Type Standard
Overall Len 2.5000 63.50MM
Dimension Description 0.313 x 0.313 x 0.500 x 2.500
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Single/Double End Double End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
