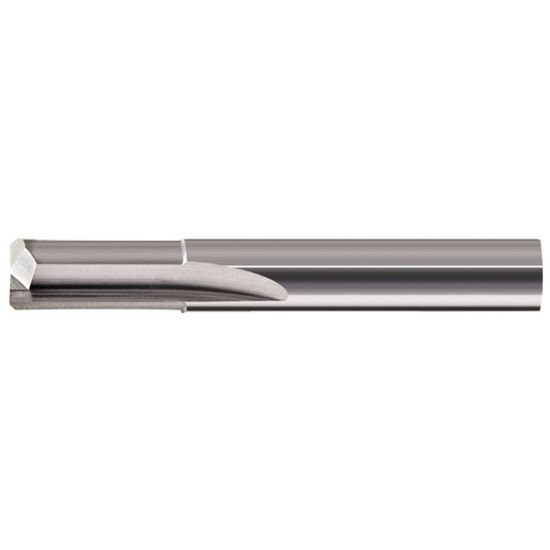

MASTERCUT DIA 5/16 SH 0.1875 LOC 0.8125 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS203-310
Delivery date: 3-5 days
$24.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Florida
Application Counterboring, Face Milling, Shoulder Milling, Slot Milling
Package Size 1
Performance Rating General Performance
Dimensional Specifications
Helix Angle 30°
Overall Len 2.5000 63.50MM
Single/Double End Single End
Machine Side Connection Size 0.1875 4.76MM
Cutter Dia 0.3125 7.94MM - 5/16
Length Of Cut 0.8125 20.64MM
End Of Tool Shape Square
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Dimension Description 0.313 x 0.188 x 0.813 x 2.500
Length Type Standard
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
