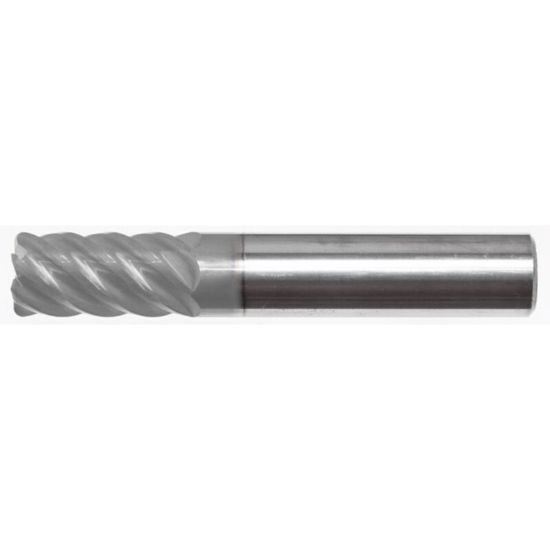

Picture of MasterCut Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm F45

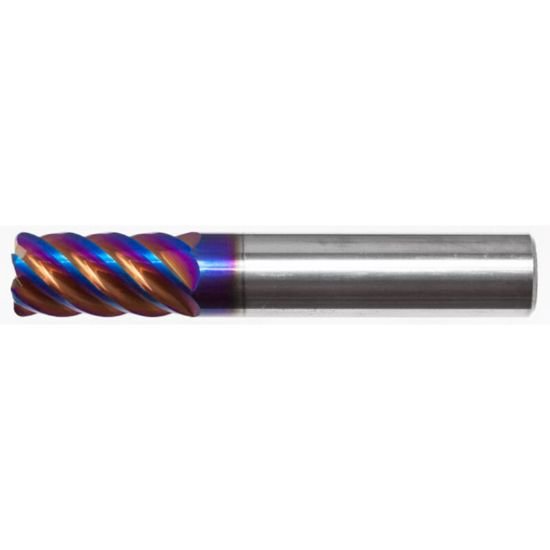

Picture of MasterCut Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm F45
Picture of MasterCut Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm F45

MasterCut Dia 5/8 SH 0.6250 LOC 1.2500 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm F45

Part Number: MAS459-262-8 0.625 x 0.625 x 1.250 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturers: MASTERCUT , MASTERCUT
SKU: 1270770
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0200 0.51MM Standard Flute Flutes 6 Single End F45 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA YES
Cutter Type Solid End Mill, Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide, Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <53HRC Steel, <53HRC Steel, Stainless Steel, Stainless Steel, High Temp, High Temp, Inconel, Inconel
Coating nACRoA, nACRoA
Mach Side Connection Size 0.6250 15.88MM, 0.6250 15.88MM
Overall Length 3.5000 88.90MM, 3.5000 88.90MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8, 0.6250 15.88MM - 5/8
Flutes/Inserts 6, 6
Tool Dia 0.6250 15.88MM - 5/8, 0.6250 15.88MM - 5/8
Length Type STANDARD, STANDARD
Performance Rating High Performance, High Performance
Length Of Cut 1.2500 31.75MM, 1.2500 31.75MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End, Single End
Corner Radius 0.0200 0.51MM, 0.0200 0.51MM
Inch/Metric Inch, Inch
Helix Angle Variable, Variable
Center Cutting Center Cutting, Center Cutting
