  • MasterCut Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0120 0.30mm F45

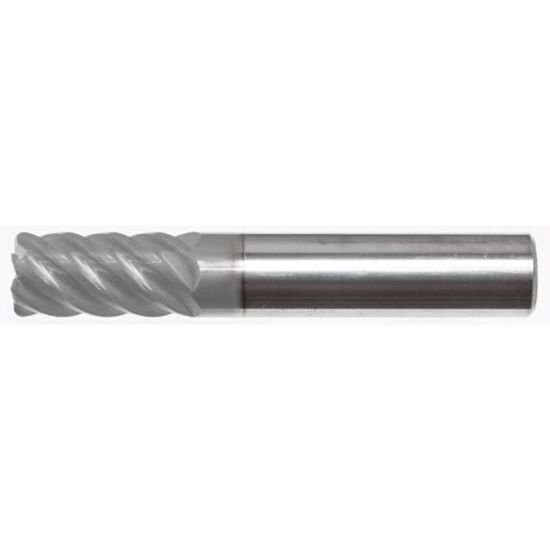

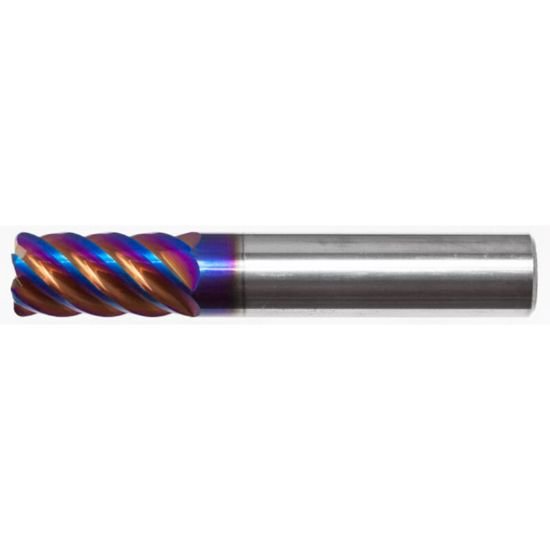

Picture of MasterCut Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0120 0.30mm F45
Picture of MasterCut Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0120 0.30mm F45
Picture of MasterCut Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0120 0.30mm F45

MasterCut Dia 5/16 SH 0.3125 LOC 0.8750 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0120 0.30mm F45

Part Number: MAS459-210-8 0.313 x 0.313 x 0.875 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturers: MASTERCUT , MASTERCUT
SKU: 1270760
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0120 0.30MM Standard Flute Flutes 6 Single End F45 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA, FLORIDA
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating <53HRC Steel, Stainless Steel, Stainless Steel, High Temp, High Temp, Inconel
Coating nACRoA
Mach Side Connection Size 0.3125 7.94MM, 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 6
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0120 0.30MM
Inch/Metric Inch
Helix Angle Variable
Center Cutting Center Cutting
