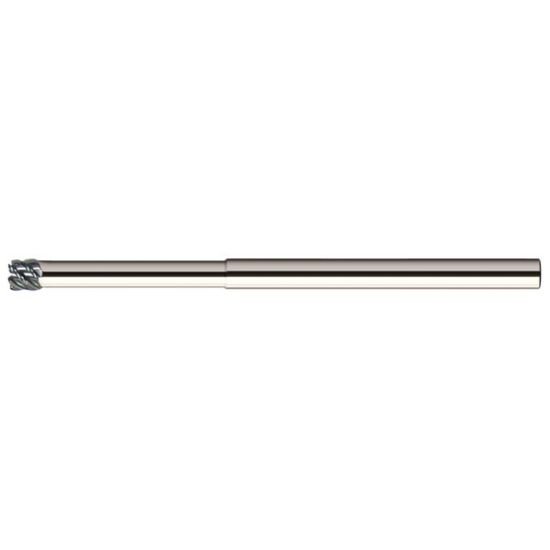

Picture of MasterCut Dia 3/8 SH 0.3750 LOC 0.3750 OAL6.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0300 0.76mm MOLD MillS

MasterCut Dia 3/8 SH 0.3750 LOC 0.3750 OAL6.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0300 0.76mm MOLD MillS

Part Number: MAS440-224-5 0.375 x 0.375 x 0.375 x 6.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: 1270863
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0300 0.76MM Standard Flute Flutes 6 Single End MOLD MILLS Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA, FLORIDA
Made In USA YES, YES
Cutter Type Solid End Mill, Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide, Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <53HRC Steel, <53HRC Steel, Stainless Steel, Stainless Steel, High Temp, High Temp, High Temp, Inconel, Inconel
Coating nACRoA, nACRoA, nACRoA
Mach Side Connection Size 0.3750 9.53MM, 0.3750 9.53MM
Overall Length 6.0000 152.40MM, 6.0000 152.40MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.3750 9.52MM - 3/8
Flutes/Inserts 6, 6
Tool Dia 0.3750 9.53MM - 3/8, 0.3750 9.53MM - 3/8, 0.3750 9.53MM - 3/8
Length Type Long / With Neck, Long / With Neck
Performance Rating High Performance, High Performance
Length Of Cut 0.3750 9.53MM, 0.3750 9.53MM, 0.3750 9.53MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End, Single End
Corner Radius 0.0300 0.76MM, 0.0300 0.76MM
Inch/Metric Inch, Inch
Helix Angle Variable, Variable
Center Cutting Center Cutting, Center Cutting
Neck Length 2.2500 57.15MM, 2.2500 57.15MM
