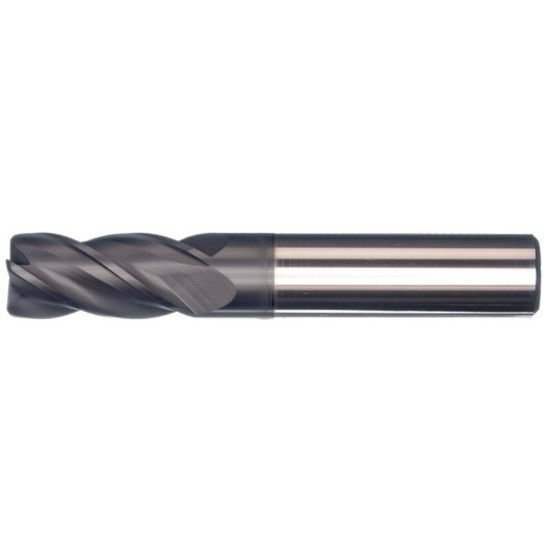

Picture of MasterCut Dia 3/4 SH 0.7500 LOC 0.8750 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0900 2.29mm V4
Picture of MasterCut Dia 3/4 SH 0.7500 LOC 0.8750 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0900 2.29mm V4
Picture of MasterCut Dia 3/4 SH 0.7500 LOC 0.8750 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0900 2.29mm V4

MasterCut Dia 3/4 SH 0.7500 LOC 0.8750 OAL3.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0900 2.29mm V4

Part Number: MAS402-516W-1 0.750 x 0.750 x 0.875 x 3.500

Need Assistance or Service? Please call 262-251-4020

Manufacturers: MASTERCUT , MASTERCUT
SKU: 1270428
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0900 2.29MM Standard Flute Flutes 4 Single End V4 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA, FLORIDA
Made In USA YES, YES
Cutter Type Solid End Mill, Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide, Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <48HRC Steel, <48HRC Steel, Gray Iron, Gray Iron, Stainless Steel, Stainless Steel, High Temp, High Temp
Coating nACRoA, nACRoA
Mach Side Connection Size 0.7500 19.05MM, 0.7500 19.05MM
Overall Length 3.5000 88.90MM, 3.5000 88.90MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.7500 19.05MM - 3/4, 0.7500 19.05MM - 3/4
Flutes/Inserts 4, 4
Tool Dia 0.7500 19.05MM - 3/4, 0.7500 19.05MM - 3/4
Length Type STANDARD, STANDARD
Performance Rating High Performance, High Performance
Length Of Cut 0.8750 22.23MM, 0.8750 22.23MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0900 2.29MM, 0.0900 2.29MM
Inch/Metric Inch, Inch
Helix Angle Variable, Variable
Center Cutting Center Cutting, Center Cutting
