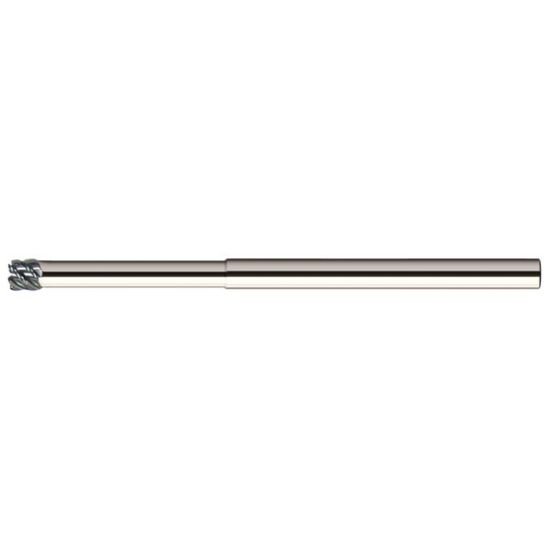

Picture of MasterCut Dia 3/16 SH 0.1875 LOC 0.1875 OAL4.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm MOLD MillS

MasterCut Dia 3/16 SH 0.1875 LOC 0.1875 OAL4.00 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0200 0.51mm MOLD MillS

Part Number: MAS440-210-5 0.188 x 0.188 x 0.188 x 4.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: 1270842
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0200 0.51MM Standard Flute Flutes 4 Single End MOLD MILLS Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA, FLORIDA
Made In USA YES, YES
Cutter Type Solid End Mill, Solid End Mill
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide, Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <53HRC Steel, <53HRC Steel, Stainless Steel, Stainless Steel, High Temp, High Temp, Inconel, Inconel
Coating nACRoA, nACRoA
Mach Side Connection Size 0.1875 4.76MM, 0.1875 4.76MM
Overall Length 4.0000 101.60MM, 4.0000 101.60MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.1875 4.76MM - 3/16, 0.1875 4.76MM - 3/16
Flutes/Inserts 4, 4
Tool Dia 0.1875 4.76MM - 3/16, 0.1875 4.76MM - 3/16
Length Type Long / With Neck, Long / With Neck
Performance Rating High Performance, High Performance
Length Of Cut 0.1875 4.76MM, 0.1875 4.76MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End, Single End, Single End
Corner Radius 0.0200 0.51MM, 0.0200 0.51MM
Inch/Metric Inch, Inch, Inch
Helix Angle Variable, Variable, Variable
Center Cutting Center Cutting, Center Cutting, Center Cutting
Neck Length 1.5000 38.10MM, 1.5000 38.10MM, 1.5000 38.10MM
