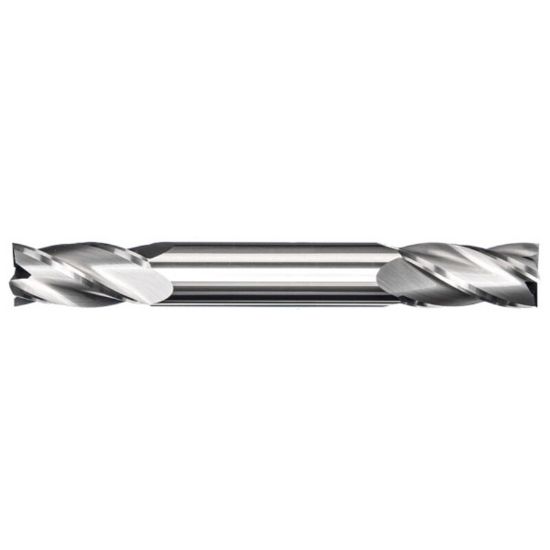

MASTERCUT DIA 1/16 SH 0.1250 LOC 0.1875 OAL 2.00 End Mill Standard Flute Standard Helix Carbide Uncoated Double End Square Sharp

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS201-106
Delivery date: 3-5 days
$13.40

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Made In USA Yes
Application Counterboring, Slot Milling, Face Milling, Shoulder Milling
Shipping State Florida
Package Size 1
Dimensional Specifications
Cut Rating <40HRC Steel, Aluminum, Ductile Iron, Gray Iron, Stainless Steel
End Of Tool Shape Square
Dimension Description 0.063 x 0.125 x 0.188 x 2.000
Helix Angle 30°
Cutter Dia 0.0625 1.59MM - 1/16
Flutes/Inserts 2
Length Type Standard
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Overall Len 2.0000 50.80MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Single/Double End Double End
Length Of Cut 0.1875 4.76MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
