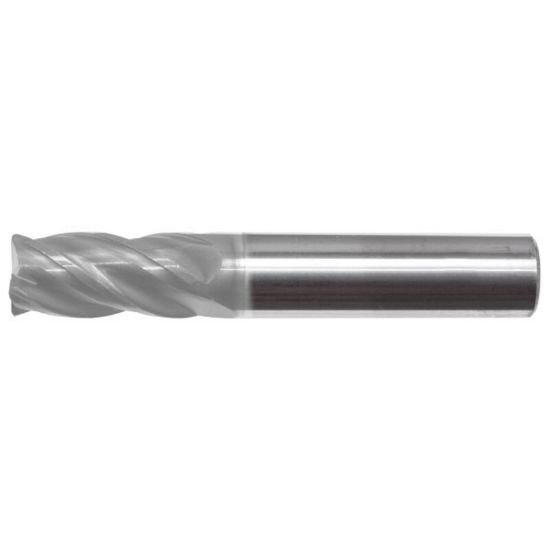

Picture of MasterCut Dia 1/8 SH 0.1250 LOC 0.2500 OAL1.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0150 0.38mm V4 Ultra

MasterCut Dia 1/8 SH 0.1250 LOC 0.2500 OAL1.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0150 0.38mm V4 Ultra

Part Number: MAS452-401-8 0.125 x 0.125 x 0.250 x 1.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: 1270572
Vendor: Sussex Tool and Supply
Call (262) 251-4020 for pricing
MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0150 0.38MM Standard Flute Flutes 4 Single End V4 ULTRA Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
Shipping State FLORIDA
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical, Cylindrical
Cut Rating <48HRC Steel, <48HRC Steel, Gray Iron, Gray Iron, Stainless Steel, Stainless Steel, High Temp, High Temp
Coating nACRoA, nACRoA
Mach Side Connection Size 0.1250 3.18MM, 0.1250 3.18MM
Overall Length 1.5000 38.10MM, 1.5000 38.10MM
Coolant Thru Non Coolant, Non Coolant
Shank/Pilot Dia 0.1250 3.17MM - 1/8, 0.1250 3.17MM - 1/8
Flutes/Inserts 4, 4
Tool Dia 0.1250 3.18MM - 1/8, 0.1250 3.18MM - 1/8
Length Type STANDARD, STANDARD
Performance Rating High Performance, High Performance
Length Of Cut 0.2500 6.35MM, 0.2500 6.35MM
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher, Carbide Bull Nose Finisher
Single/Double End Single End, Single End
Corner Radius 0.0150 0.38MM, 0.0150 0.38MM
Inch/Metric Inch, Inch
Helix Angle Variable, Variable
Center Cutting Center Cutting, Center Cutting
