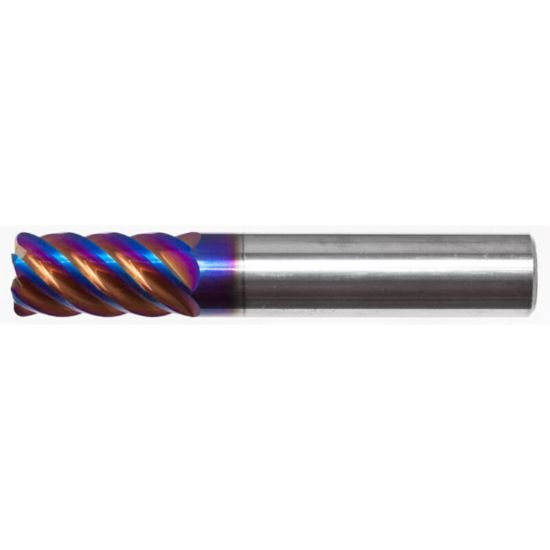

Picture of MasterCut Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0100 0.25mm F45

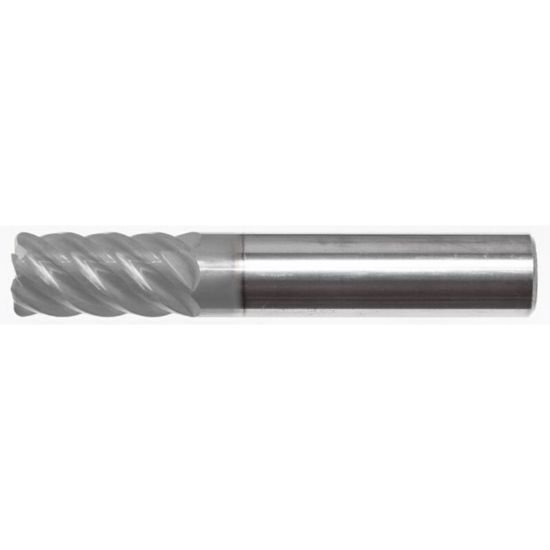

Picture of MasterCut Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0100 0.25mm F45
Picture of MasterCut Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0100 0.25mm F45

MasterCut Dia 1/4 SH 0.2500 LOC 0.7500 OAL2.50 End Mill Standard Flute Variable Helix Carbide nACRoA Single End Corner Radius0.0100 0.25mm F45

Part Number: MAS459-200-8 0.250 x 0.250 x 0.750 x 2.500
Tool Cross-Reference
Looking for alternatives…
Manufacturer:
Call (262) 251-4020 for pricing
SKU: 1270758

Description

MASTERCUT Variable Helix End Mill Carbide nACRoA Corner Radius 0.0100 0.25MM Standard Flute Flutes 6 Single End F45 Carbide TripleCoatings3® - version = CrN + AlTiCrN + nc-AlCr-Si3N4 high wear and heat resistance (1100/900 °C) tough core, hard skin wide application range with high performance for machining of super alloys under difficult conditions e.g.friction welding, injection and plastic molding
Products specifications
Attribute name Attribute value
General Information
Shipping State FLORIDA, FLORIDA
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD, STANDARD
End Of Tool Shape CORNER RADIUS, CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting, Center Cutting
Dimensions & Sizing
Overall Length 2.5000 63.50MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E, 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 6
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Of Cut 0.7500 19.05MM
Geometry & Angles
Corner Radius 0.0100 0.25MM, 0.0100 0.25MM
Helix Angle Variable
Performance & Capacity
Cut Rating <53HRC Steel, Stainless Steel, Stainless Steel, High Temp, High Temp, Inconel, Inconel
Performance Rating High Performance
Materials & Finish
Tool Material Carbide, Carbide
Cutting Edge Mat Carbide
Coating nACRoA
