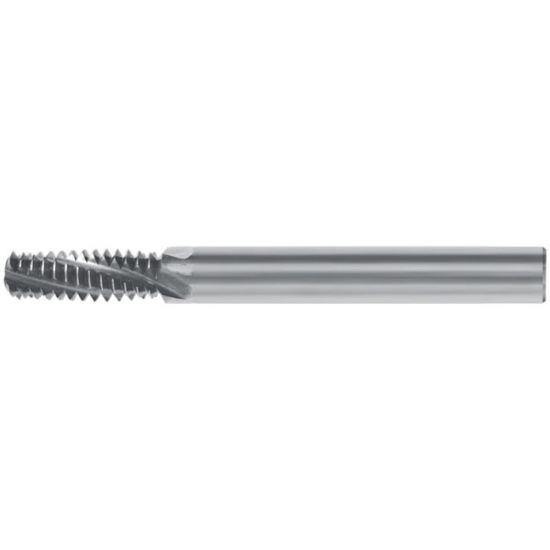

MASTERCUT 290-208 .620x1.546x5/8x4 BSPT ThreadMills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS290-208
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Shipping State Florida
Application Thread Milling
Package Size 1
Made In USA Yes
Dimensional Specifications
Thread Pitch 11.00TPI
Length Of Cut 1.5460 39.27MM
Thread Size 1"
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.6250 15.88MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Cutter Dia 0.6200 15.75MM
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Automotive Yes
Job Shop Yes
Energy Yes
Aerospace Yes
