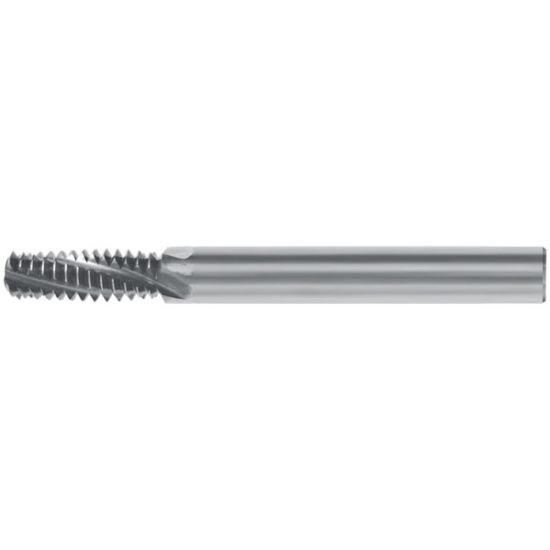

MASTERCUT 290-204 .312x.578x5/16x3 BSPT ThreadMills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS290-204
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Thread Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Florida
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3125 7.94MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.3120 7.92MM
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Overall Len 3.0000 76.20MM
Length Of Cut 0.5780 14.68MM
Flutes/Inserts 4
Thread Size 1/4"-3/8
Thread Pitch 19.00TPI
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
