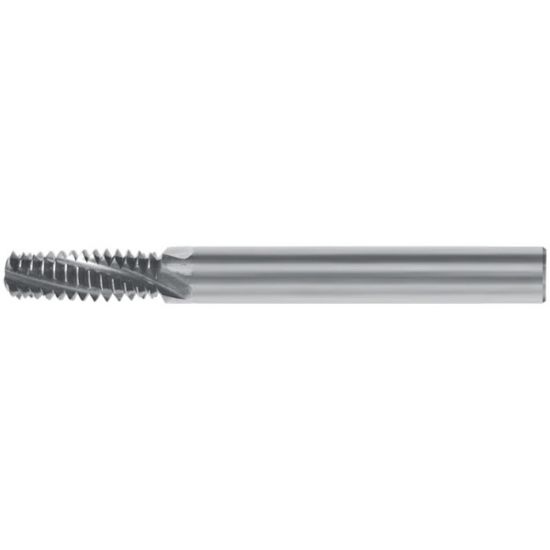

MASTERCUT 290-108 .620x1.546x5/8x4 BSPP ThreadMills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS290-108
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Thread Milling
Shipping State Florida
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.6250 15.88MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.6200 15.75MM
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 5
Thread Size 1"
Cut Rating <40HRC, Stainless, Iron, High Temp
Thread Pitch 11.00TPI
Length Of Cut 1.5460 39.27MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Energy Yes
Automotive Yes
Aerospace Yes
Job Shop Yes
Medical Yes
