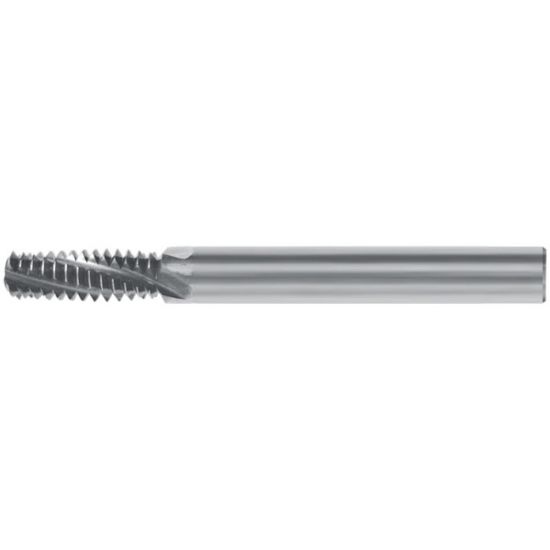

MASTERCUT 290-024 .340x7/8x3/8x3 ThreadMills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS290-024
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Performance Rating High Performance
Package Size 1
Application Thread Milling
Shipping State Florida
Dimensional Specifications
Thread Size 7/16"
Overall Len 3.0000 76.20MM
Cut Rating <40HRC, Stainless, Iron, High Temp
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Length Of Cut 0.8750 22.23MM
Cutter Dia 0.3400 8.64MM
Flutes/Inserts 4
Thread Pitch 14.00TPI
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
