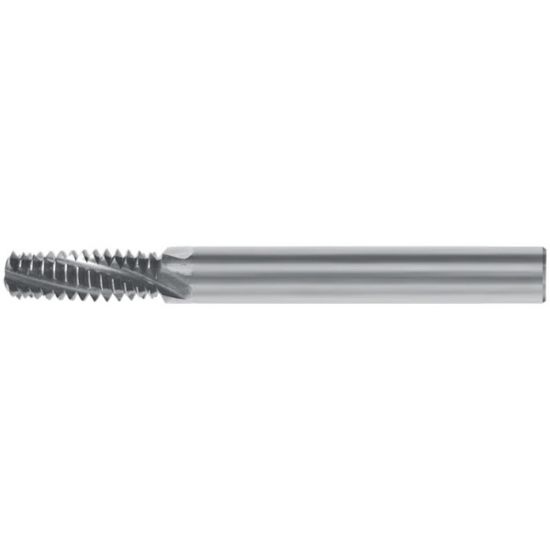

MASTERCUT 290-008 .120x5/16x3/16x2 ThreadMills

Need Assistance or Service? Please call 262-251-4020

Manufacturer: MASTERCUT
SKU: MAS290-008
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Florida
Package Size 1
Application Thread Milling
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Cylindrical
Thread Size No.10
Tool Material High Speed Steel
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Overall Len 2.0000 50.80MM
Machine Side Connection Size 0.1875 4.76MM
Thread Pitch 24.00TPI
Cut Rating <40HRC, Stainless, Iron, High Temp
Length Of Cut 0.3125 7.94MM
Cutter Dia 0.1200 3.05MM - #31
Flutes/Inserts 3
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Energy Yes
Aerospace Yes
Automotive Yes
Job Shop Yes
