  • M.A. FORD DE2BM2000 DIA 20MM SH 0.7874 LOC 0.9843 OAL 3.9370 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

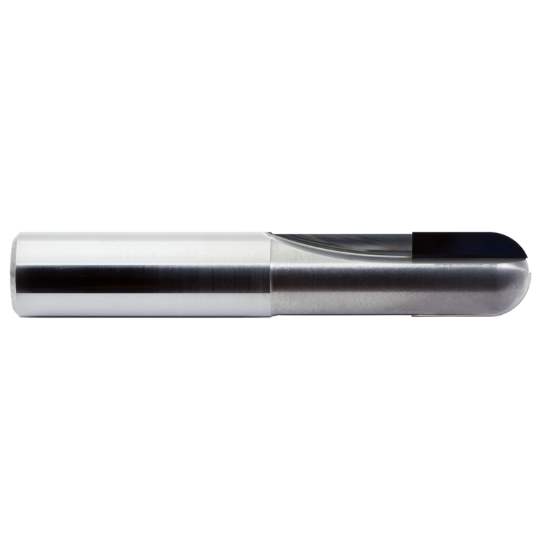

Picture of M.A. FORD DE2BM2000 DIA 20MM SH 0.7874 LOC 0.9843 OAL 3.9370 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2BM2000 DIA 20MM SH 0.7874 LOC 0.9843 OAL 3.9370 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90134
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Shipping State Iowa
Package Size 1
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Overall Len 3.9370 100.00MM
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 2
Inch/Metric Metric
Tool Material PCD
Machine Side Connection Type Cylindrical
Dimension Description 0.787 x 0.787 x 0.984 x 3.937
Shank/Pilot Dia 0.7874 20.00MM
Single/Double End Single End
Length Type Standard
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 0.9843 25.00MM
Cut Rating Graphite, Fiberglass
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Cutting & Machining Properties
Cutting Edge Mat PCD
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
