  • M.A. FORD DE2BM1200 DIA 12MM SH 0.4724 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

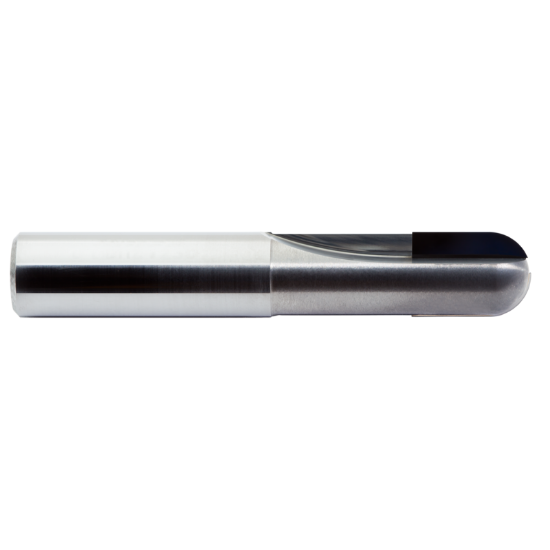

Picture of M.A. FORD DE2BM1200 DIA 12MM SH 0.4724 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2BM1200 DIA 12MM SH 0.4724 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90132
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Side Milling, Copy Milling, Ball Milling, Profile Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Iowa
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Flutes/Inserts 2
Inch/Metric Metric
Dimension Description 0.472 x 0.472 x 0.591 x 2.953
Tool Material PCD
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Type Cylindrical
Cutter Dia 0.4724 12.00MM
Cutter Style PCD Ball
Helix Angle 0°
Length Type Standard
Cut Rating Graphite, Fiberglass
Length Of Cut 0.5906 15.00MM
End Of Tool Shape Ball Nose
Overall Len 2.9528 75.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat PCD
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
