  • M.A. FORD DE2BM1000 DIA 10MM SH 0.3937 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

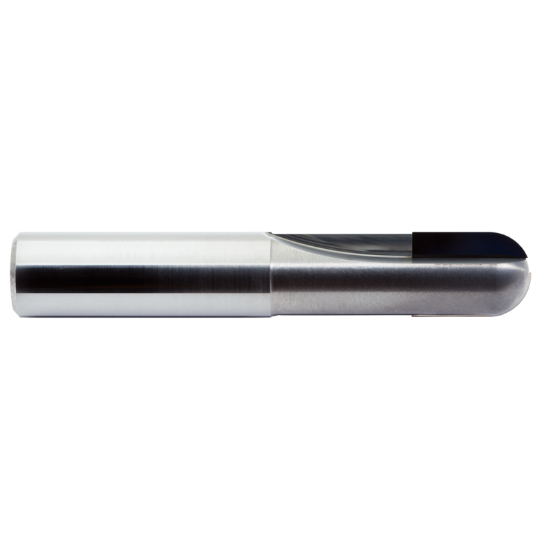

Picture of M.A. FORD DE2BM1000 DIA 10MM SH 0.3937 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

M.A. FORD DE2BM1000 DIA 10MM SH 0.3937 LOC 0.5906 OAL 2.9528 End Mill Standard Flute Standard Helix PCD Uncoated Single End Ball Nose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: M.A. FORD
SKU: MAF90131
Delivery date: 3-5 days
Call (262) 251-4020 for pricing

Cutting Edge Definition

PCD stands for “Poly Crystalline Diamond”, the hardest available cutting material. PCD is a synthetic diamond produced by sintering together selected diamond particles with a metal matrix at high temperature and high pressure. The result is 90-95% diamond content material that reaches a hardness close to 6000 HV. In addition, the small amount of the binder gives the material additional toughness that makes it an efficient cutting material.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Ball Milling, Side Milling, Copy Milling
Shipping State Iowa
Performance Rating High Performance
Made In USA Yes
Package Size 1
Dimensional Specifications
Flutes/Inserts 2
Length Type Standard
Dimension Description 0.394 x 0.394 x 0.591 x 2.953
Machine Side Connection Size 0.3937 10.00MM
Cut Rating Graphite, Fiberglass
Length Of Cut 0.5906 15.00MM
End Of Tool Shape Ball Nose
Cutter Style PCD Ball
Helix Angle 0°
Tool Material PCD
Shank/Pilot Dia 0.3937 10.00MM
Cutter Dia 0.3937 10.00MM
Machine Side Connection Type Cylindrical
Overall Len 2.9528 75.00MM
Inch/Metric Metric
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat PCD
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
